Economical and efficient
The undercounter is extremely economical to run. Further, overall operating costs are reduced by lower consumption of chemicals and electricity. This is all with top-quality wash results.
Under-Counter

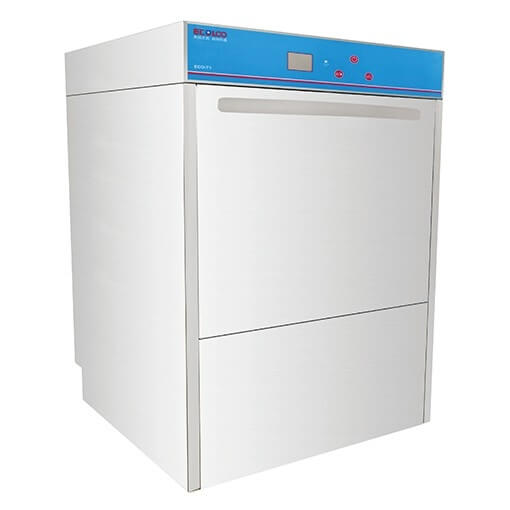

UNDER-COUNTER EHS-T1 DISHWASHER
EHS under-counter dishwashers can be installed under the bar & cafe, in the serving area, or in a separate wash-up room - but wherever you choose, you can be confident they will always offer the same fantastic performance in a compact package. Ideally for 50 pax set up.
Under-counter is a great choice because of its intuitive controls, cost-effective operation, and outstanding value. Its mission is to make sparkling glasses and clean dishes with impeccable cutlery. Your dream machine.
Product Benefits
Why choose the ECO-T1?
Customized solution
The undercounter can be adapted to your space and your dishes. There are three different pre-set times programs, choose according to the type and level of dirt on the wash items. Or set based on special requirements.
User-friendly
Smart touch display with progress and program indicator. Single-button operation. Ergonomic door handle. It is easy to clean with two wash fields at your fingertips. The undercounter is intuitive and easy to use.
Cleanliness and hygiene
Sparkling and hygienically spotless. Visually unblemished. The undercounter guarantees flawless wash results every time. The highest hygiene and cleanliness standards. The highest quality standards and reliability.
Key Features
Built for performance
Special Rinse Pump
Ensuring consistent rinse water volume and detergent use, cost control made easy.
Unique Rinse Arms Design
Flexible top and bottom rinse arms covering all angles enhancing wash performance. Unique rinse arm and nozzle design resulting in better cleaning.
Excellent Rinse Temperature Control System
Rinse temperature for every wash reaching between 65-85 deg C.
Flexible Wash Cycle
Flexible choices: 90s / 120s, satisfying different ware wash needs.
Digital Temperature
Front controller, simple button design, and bright LCD temperature indicator for easy operation.
* Three built-in pumps for washing, rinsing, and drainage help maintain steady high-speed wash cycles.
Technical Data
ECO-T1 Specifications
Washing Capacity
Workload (Seats) 60
Racks Per Hour 40
Total 6" Plates Per Hour 800
Electrical Rating
Operating Voltage (V) 220 / 380
Operating Amp (A) 32
Wash Water Pump (kW) 0.37
Rinse Water Pump (kW) 0.1
Main Washing Heater (kW) 2
Rinse Heater (kW) 4.5 / 6.5
Total Electricity Consumption (kW) 6.5 / 8.5
Operation Time
Washing Time Selection (s) 60 / 90 / 120
Cycle Setting Adjustable according to soil level
Water Rating
Flow Pressure (kg.f/cm2) 1 - 4
Water Consumption (L/H) 72
Liters Per Rack (L/R) 1.6
Wash Tank Capacity (L) 15
Temperature Rating
Washing Temperature (C) 60
Rinse Temperature (C) 65 - 85

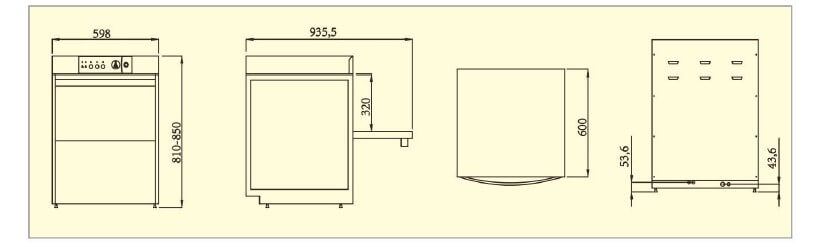

Machine Dimension
Length (mm) 600
Width (mm) 600
Height (mm) 810 - 850
Weight (kg) 60
Main Materials Quality
Quality components where it matters most
The ECO-T1 is built around imported core parts and stainless steel construction selected for durability, hygiene, and long-term commercial performance.
Heating Elements from Italy
Uses heating elements paired with 316 stainless steel for better resistance in a demanding wash environment.
Italian Pump Set
Wash pump, rinse pump and drain pump are specified from Italy to support stable circulation, rinse consistency, and dependable drainage.
304 Stainless Steel Body
The machine body is made from 304 stainless steel to maintain hygiene, ease cleaning, and stand up to daily commercial use.
